Name: ACHD Hydro

Display Field: WaterName

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: This feature class was created in part from Idaho Dept of Waters Resources NHD for Ada County, ACHD's mapped irrigation laterals, as well as of Ada County's Assessor's GIS water layer. ACHD GIS Hydro Layer Hydro-type Definitions Irrigation –Waterbodies that have been labeled as “Irrigation” are those that are likely man-made water features used primarily to convey irrigation water or drain irrigated land. Waterbodies identified as “Irrigation” Hydro-type have identifiers in their names that include Lateral, Sublateral, Drain or Ditch e.g. the Southern Lateral or Davis Drain. Waterway – Waterbodies that have been labeled as “Waterway” are those that are natural water features or natural water features that have been modified. Waterbodies that have Hydro-type “Waterway” have identifiers in their names that include Creek, Gulch, River e.g. Fivemile Creek. Waterway-Seasonal (previously denoted as “Waterway-Intermittent”) – Waterbodies that have been labeled as “Waterway- Seasonal” are those that are natural water features that flow or contain water on an intermittent basis, usually after the winter snow melt. These waterbodies may also flow after a heavy rain or rain on snow event. Waterbodies that have Hydro-type “Waterway-Seasonal” have identifiers in their names that include Creek, Gulch, River e.g. Fivemile Creek. Canal – Waterbodies that have been labeled as “Canal” are those that are man-made water features that convey water from a natural waterbody such as the Boise River to other waterbodies for the purpose of providing irrigation water for distribution to water users. Waterbodies that have Hydro-type “Canal” have identifiers in their names that include Canal, Aqueduct, e.g. Ridenbaugh Canal.

Service Item Id: 9e47e9fe27374c7ca52116e175f60425

Copyright Text: Questions regarding ACHD GIS Hydro Layer definitions can be addressed to Erica Anderson Maguire at emaguire@achdidaho.org or 208-387-6254. Questions regarding the creation of this layer or the data therein please contact Sharon Anderson at sanderson@achdidaho.org or 208-387-6242.

Default Visibility: false

Max Result Window: N/A

Max Record Count: 2000

Standard Max Record Count No Geometry: 32000

Max Record Count Factor: 1

Standard MaxRecord Count: 8000

Tile Max Record Count: 4000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 2409942.705550831
YMin: 594443.7500264049
XMax: 2558630.4997100793
YMax: 788959.4456399083
Spatial Reference: 102459  (102459)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: HYDRO_TYPE
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Canal
  Label: Canal
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 197, 255, 255]
  Width: 1
• Value: Irrigation
  Label: Irrigation
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 168, 132, 255]
  Width: 1
• Value: Waterway
  Label: Waterway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 38, 115, 255]
  Width: 1
• Value: Waterway-Intermittent
  Label: Waterway-Intermittent
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [190, 210, 255, 255]
  Width: 1
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 112, 255, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: italic
Font Weight: normal
Font Decoration: none

Min. Scale: 24000.0
Max. Scale: 0.0

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports Result Pagination Token: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Cache Hint: false
Supports Query With Current User: true
Supports Query With Result Type: true

HasZ: false

HasM: false

Has Attachments: false

Has Last Edit Time: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: N/A

Fields:

• HYDRO_TYPE ( nullable: true, length: 25, alias: HYDRO_TYPE, type: esriFieldTypeString )
• WaterName ( nullable: true, length: 30, alias: NAME, type: esriFieldTypeString )
• AltName ( nullable: true, length: 70, alias: AltName, type: esriFieldTypeString )
• Jurisdiction ( nullable: true, length: 50, alias: Jurisdiction, type: esriFieldTypeString )
• Notes ( nullable: true, length: 150, alias: Notes, type: esriFieldTypeString )
• Piped ( nullable: true, length: 10, alias: Piped, type: esriFieldTypeString , Coded Values: [TRUE: TRUE] , [FALSE: FALSE] )
• pXSecShape ( nullable: true, length: 20, alias: XShape, type: esriFieldTypeString , Coded Values: [ARCH: ARCH] , [BOX: BOX] , [CIRCULAR: CIRCULAR] , ...3 more... )
• pMaterial ( nullable: true, length: 25, alias: Material, type: esriFieldTypeString , Coded Values: [PVC: PVC] , [RCP: RCP] , [CMP: CMP] , ...6 more... )
• pDiameter ( nullable: true, alias: Diameter, type: esriFieldTypeSmallInteger )
• Blank1 ( nullable: true, length: 25, alias: Blank1, type: esriFieldTypeString )
• Blank2 ( nullable: true, length: 25, alias: Blank2, type: esriFieldTypeString )
• AssocOF ( nullable: true, length: 25, alias: AOF, type: esriFieldTypeString )
• GlobalID ( nullable: false, length: 38, alias: GlobalID, type: esriFieldTypeGlobalID )
• OBJECTID ( nullable: false, alias: OBJECTID, type: esriFieldTypeOID )
• Shape ( nullable: true, alias: Shape, type: esriFieldTypeGeometry )
• Shape.STLength() ( nullable: true, alias: Shape.STLength(), type: esriFieldTypeDouble )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

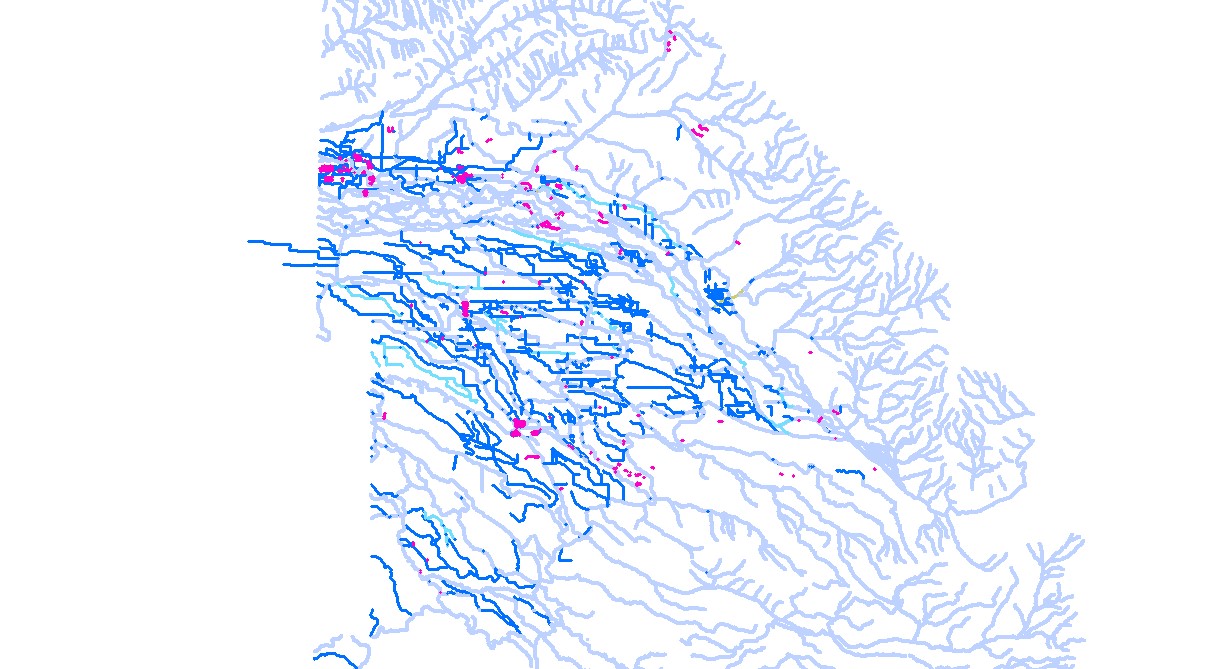

  Iteminfo   Thumbnail   Metadata
